External Battery Mount (deprecated)

External Battery Mount (deprecated)

Non-series components SM-BMR1 / SM-BMR2

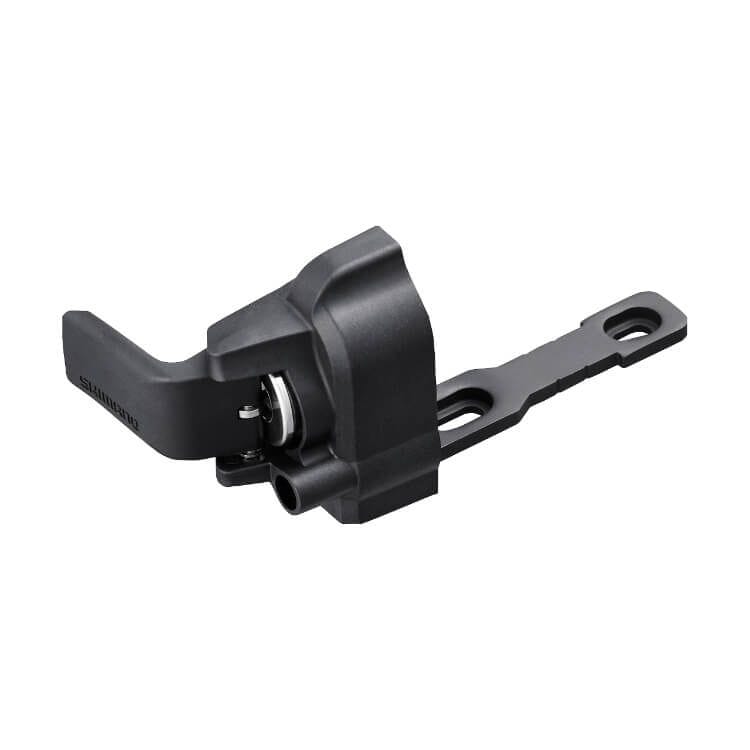

This Shimano SM-BMR1 / SM-BMR2 external battery mount was used with the SM-BTR1 external Di2 battery all the way until Shimano released the updated BM-DN100 battery mount.

Just like the later model, the older BMR1 / BMR2 come in different sizes, a long and a short version. Which one you need depends on your frame mounting options.

The short (-S) version is generally mounted underneath the bike, below the chain stay for example.
The longer -L version usually screws into the down tube bottle cage holes and allows you to install a bottle cage and an external battery.

Affiliate Links

Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.

Ebay

SM-BMR1 vs SM-BMR2 vs BM-DN100

The SM-BMR1 and SM-BMR2 are basically the same device. The '2' version is newer and is of better built quality. Apparently there were some waterproofing issues with early SM-BMR1 models.

In case you're thinking of installing a D-fly or wireless unit - only the BM-DN100 will allow for BluetoothLE communications. This means that the SM-BMR1 / BMR2 only support ANT using the SM-EWW01 D-fly and SC-M9050 display.

The updated BM-DN100 is required in order to use the EW-WU111 / EW-WU101 / SC-MT800 / SC-M9051 and connect to mobile phones.

Updating the SM-BMR1 / SM-BMR2

I've heard reports that the SM-BMR1 can only be updated using the SM-PCE1. That means you may not be able to update it using the newer SM-PCE02.

While I haven't been able to confirm this, I do have a corrupted/broken SM-BMR1 that cannot be restored using the SM-PCE02... so there is probably some truth to this.

Also, some older Shimano documents state that the battery must be removed when you update these units.

Specifications

  • Model code: SM-BMR1 / SM-BMR2
  • Series: Non-series components (NON)
  • Weight: 25g
  • Speeds: 10 / 11
  • Battery: SM-BTR1
  • Charging port: No
  • Charger: SM-BCR1
