Crankset (1x, 2x)
FC-M5100
Contrary to the XTR MTB groupset, there is no triple XT Front Derailleur. Selecting an XT Crankset is therefore a bit easier.
You either use a Front Derailleur and the FC-M5100-2 crankset, or you don't use a Front Derailleur. In that case you would use the FC-M5100-1 single crankset.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.

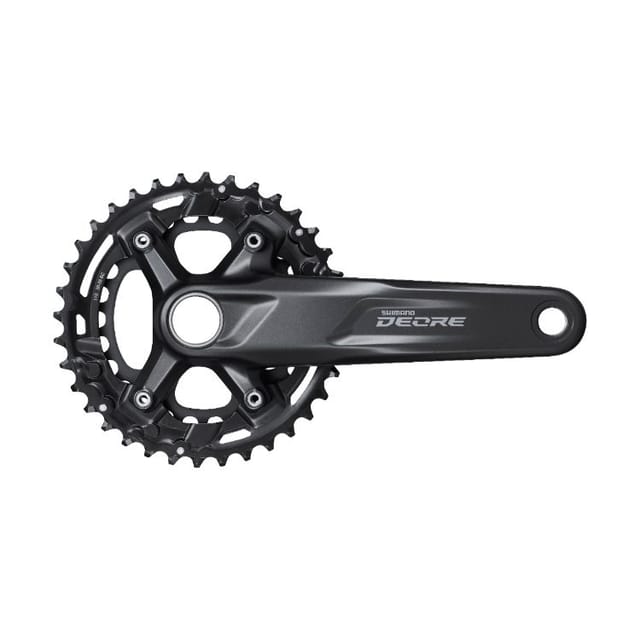

FC-M5100-2
This crankset has a Q-factor of 178.5mm and a chain line of 48.8mm. It comes with a 36-26T chainrings. It'll work with 135 mm and 142 mm O.L.D. frames.

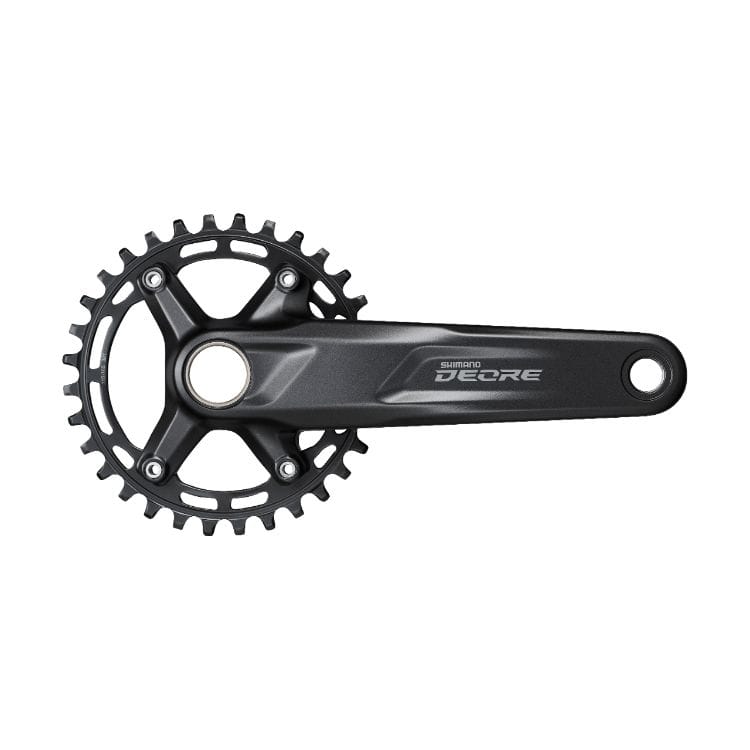

FC-M5100-1
The single crankset has the same Q-factor of 178.5mm, but a slightly different chain line: 52mm. It is meant to be used with 135 mm, 142 mm and 148 mm O.L.D. frames.
Specifications
- Model code
- FC-M5100
- Series
- XT M8050
- Weight
- 850g
- Chain line
- 48.8mm (2x), 52mm (1x)
