Cheat Sheet: 12-speed battery checks

Updated November 7, 2022 by BetterShifting Terry

To check a shift lever battery, press-and-hold both buttons on that shift lever for 0.5 seconds or more.

Shift lever battery check

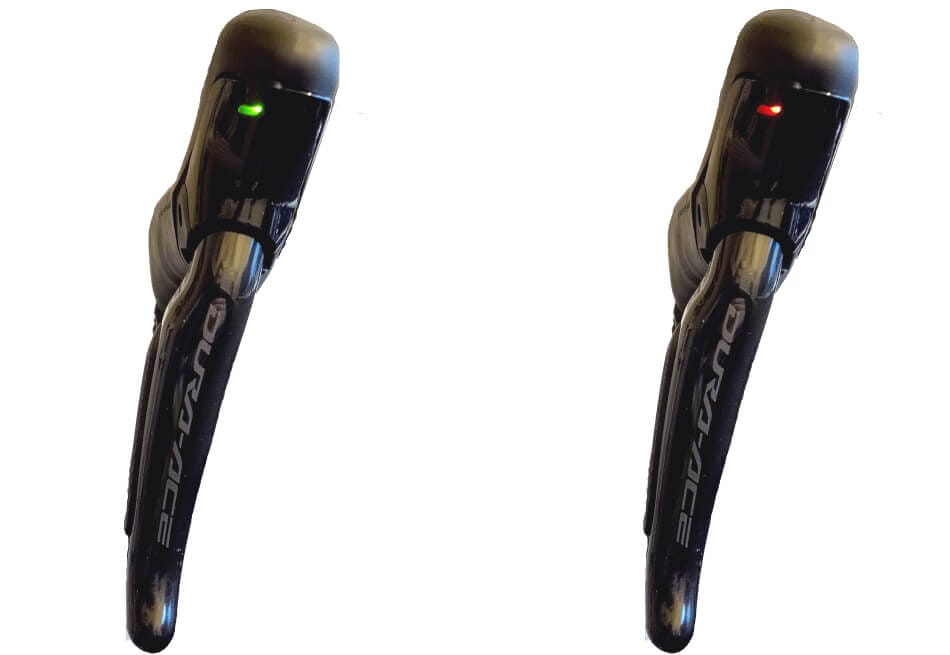

The LED on the shift lever will then indicate the battery status.

Shift lever battery status

  • Green: 11% to 100% battery
  • Red: 1% to 10% battery level
  • No LED: 0%

If your shifter LED turns red, you have about a month to go before it’ll go completely flat - buy a new CR1632 (Amazon | eBay) and replace that battery as soon as possible.

Here is more information on checking and changing wireless shift lever batteries.

Check 12-speed main system battery status

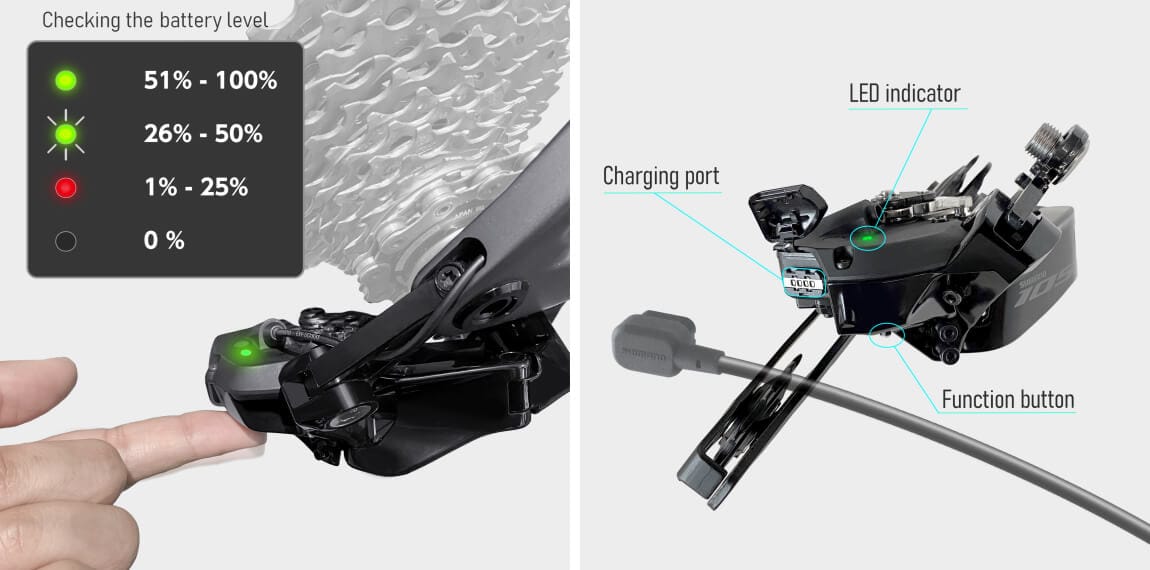

To check the 12-speed main battery charge, press the button on the rear derailleur for 0.5 seconds or less.

Check 12-speed Di2 main battery charge
