Internal seatpost battery installation guide
The Shimano BT-DN110 internal Di2 battery can be installed in a number of places: the fork, mtb handlebar, a really long stem.. anywhere that fits really. You will most often find it installed in the seatpost and for good reason: this way it is close to junction B and the bike’s derailleurs.
Di2 battery washers adapters Despite many manufacturers advertising “Di2 compatible” seatposts, you can install the battery just fine in a regular seatpost – as long as it’s round. All you’ll need to install the battery in a non-Di2-compatible seatpost is a seatpost battery holder.
Note: If your frame is equipped with an aero seatpost please consult your frame manufacturer for Di2 battery installation guidance as regular battery holders won’t do.
Install in a Di2 compatible seatpost
If you have a Di2 compatible seatpost like the PRO Vibe (carbon), you won’t need any additional seatpost battery holder.
Your seatpost will have come with a Di2 battery collar (holder). It will probably already be installed, but if it isn’t, install it.

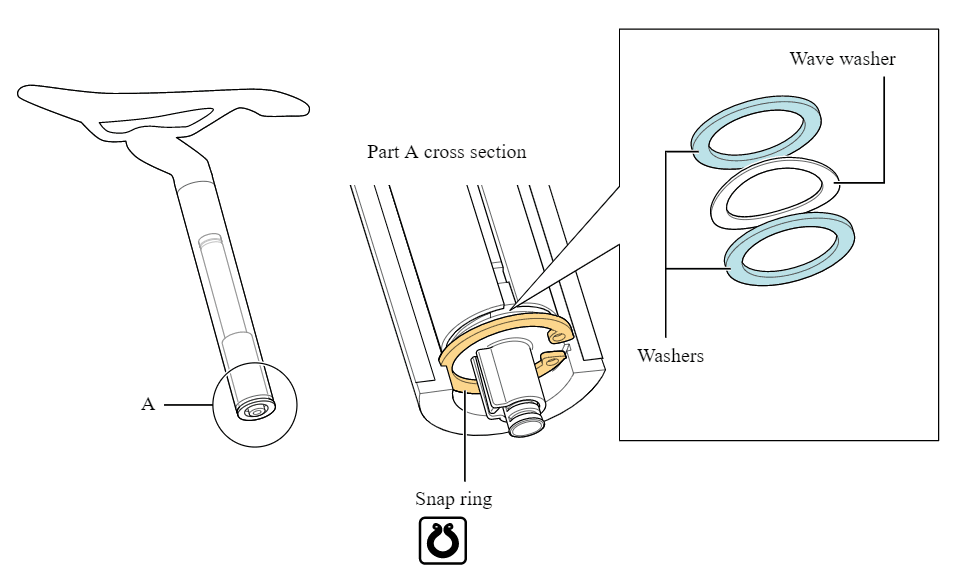

Now take the two black adapter plates that came with your battery and put them around the battery and slide the battery into the seatpost collar until the adapters slide into place. Next you’ll have to install the washers. First install a flat washer, then the wave washer and finally the second flat washer.

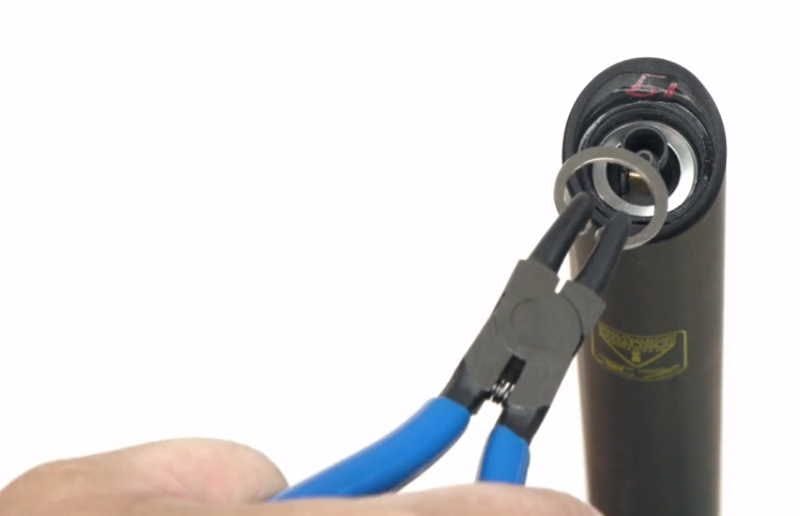

To fix the battery in the seatpost and finish its installation you’ll have to insert the snap ring. Take a set of snap ring pliers with a claw diameter of 2 mm or less to mount the snap ring and place it on top of the final washer.
Your battery installation is now complete – all that’s left to do is to connect the battery to the rest of the system using an electric wire.
Install the battery with seatpost battery holder
You could try to install the battery without a battery holder if you really wanted to, but make sure you secure it well – you do not want it to slide out or start rattling whenever you ride across bumpy terrain.
As far as I'm concerned a Di2 seatpost battery holder is the only real option. All the major brands make these, both in the 27.2 mm and 31.6 mm sizes.
So now that you have your seatpost battery holder of choice, it’s time to install the battery. The images we’ll use on this page show PRO Di2 battery seatpost holder, but the process is similar for other brands’ holders.

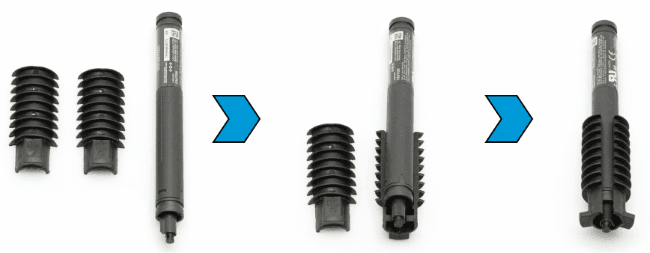

Take the rubber adapters and slide them around the battery as shown above. Make sure you can still access the e-tube port. Now would be a good time to remove the dummy plug from the port.

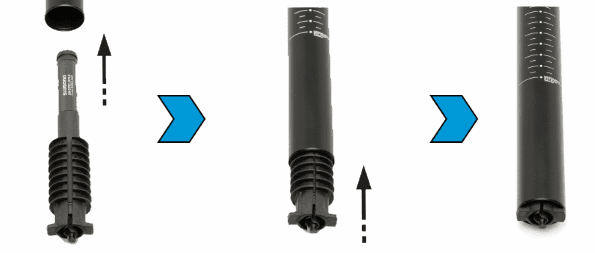

Then slide the battery and rubber adapters into the seatpost. This will fix the battery into place.
That’s it, you’re all done! You can now connect the rest of the system and finish installing your Di2 components.
