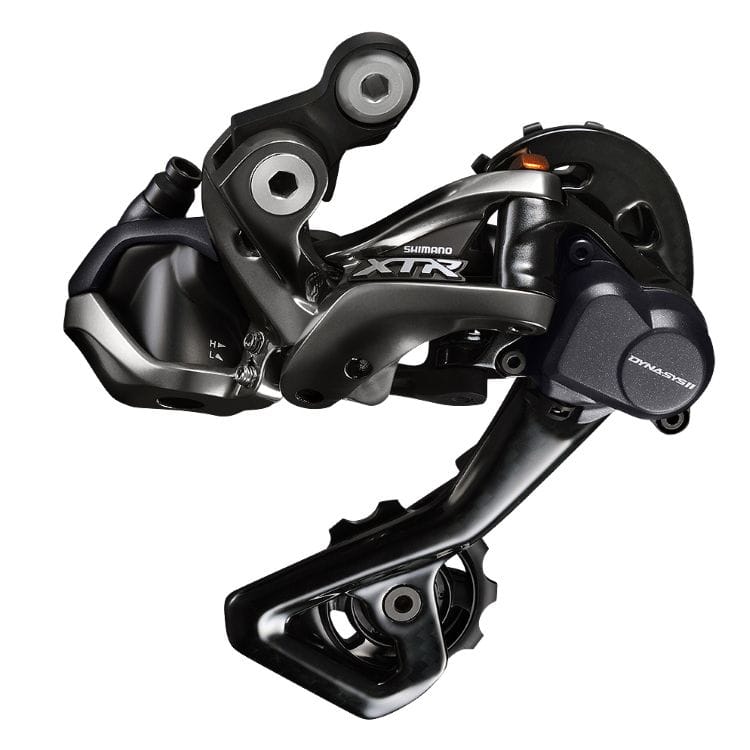

XTR RD-M9050-GS Medium Cage Rear Derailleur

component-RD-M9050-GS

The Shimano RD-M9050 Shadow RD+ GS 11 speed rear derailleur weighs 290g, features direct mount, a clutch mechanism and smooth shifting even under heavy load.

I

di2-dealer-manual-xtr-m9050

XTR M9050 Dealer Manual

manual-di2-rear-derailleur

Di2 Rear Derailleur User Manual

### Synchronized Shifting and MTB derailleurs
If you're thinking of installing MTB derailleurs on your gravel bike, keep in mind that, to be able to use synchronized shifting, an [SC-MT800 display](/component/xt-display-junction-sc-mt800/) or [SC-M9051 display](/component/xtr-display-junction-sc-m9051/) is required.

**Synchronized shift** is available on all 11-speed and 12-speed road series, as well as MTB and GRX.

That includes:

- 105 R7150 (**12-speed**)
- Ultegra 6870 (11-speed)
- Ultegra R8050 (11-speed)
- Ultegra R8150 (**12-speed**)
- Dura-Ace 9070 (11-speed)
- Dura-Ace R9150 (11-speed)
- Dura-Ace R9250 (**12-speed**)
- XT M8050 (MTB, 11-speed)
- XTR M9050 (MTB, 11-speed)
- GRX RX815 (Gravel, 11-speed)

12-speed Shimano e-MTBs also feature Auto Shift and Free Shift, and I'll cover that in a future article.

In this guide I’ll first explain what *Synchronized Shift* is *exactly*, then walk you through the requirements, and finally, set it up using both [the mobile app](/set-up-di2-synchronized-shifting-using-e-tube-mobile/) and [E-Tube Project for Windows](/di2-e-tube-software-and-downloads/).

Are you wondering why **synchronized shift doesn't work on your 12-speed bike**? Or perhaps your 12-speed time-trial bike? You probably haven't changed the bike's selected shift mode to synchronized shift yet. [Read this section on how to change shift mode](#changeshiftmode).

If you want to skip ahead, use these links:

- [What is Synchronized Shift](#whatissynchroshift)
- [Synchronized Shifting requirements](#synchrorequirements)
- [Change shift mode - enable synchro shift](#changeshiftmode)
- [Set up Synchronized Shift using E-Tube Project for Windows](#setupwindows)
- [Using the E-Tube mobile app to set up Synchronized Shift](#setupmobile)
- [What to do when your cassette/chainrings are not listed](#cassetteisnotlisted)
- [Synchro Shift with FD-6870 / FD-9070](#note68709070synchro)

## What is Synchronized Shift {#whatissynchroshift}
Di2 Synchronized Shift is Shimano’s name for the Di2 automatic shift modes. Yep.. modes.
There isn’t just one Synchro Shift, but actually two distinct modes, *Full Synchronized Shift* and *Semi Synchronized Shift*.

According to Shimano; “*(full) Synchronized Shift is a function that automatically shifts the front derailleur when the rear derailleur is shifted, allowing the derailleurs to work together efficiently.*”

When the other mode - *Semi Synchro Shift* -  is selected, the bike will shift the rear derailleur automatically when you shift the front derailleur. In this mode, the bike compensates for the front shift by moving the rear derailleur one or two gears.

Of course, you can also decide not to use the Synchro modes at all. That is referred to as *Manual mode* - because, as you might have guessed, you’ll be shifting everything manually.

Let’s briefly run through each Synchro mode.

### Synchro Shift (default: S2)
So, knowing that *(full) Synchronized Shift* automatically shifts the front derailleur, how does that work exactly?

Some people think the bike keeps track of your speed and cadence and automatically shifts for you. Others think there is some other kind of intelligence at play.

This would be amazing, but *Synchro Shift* is not that clever. It just automatically shifts the front derailleur when the rear derailleur reaches certain predefined gears. These shift points can be set and fully customized by the user as we’ll discuss below.

![Synchronized shift map](https://assets.bettershifting.com/synchro_explained_map_d54fc16cc8.png)

When shifting from **11T** towards **28T** the system will automatically shift from the big ring to the small ring between **25T** and **21T**

You can still shift the front derailleur manually any time you like, of course. Note that when you shift the front derailleur yourself it will not shift the rear derailleur to compensate.

### Semi Synchro Shift (default: S1)
When your bike is set to Semi Synchro that means it’ll automatically shift the rear derailleur to compensate for any front derailleur shift. This will reduce or even eliminate big jumps in gear ratios when shifting the front derailleur.

<YouTube videoId="CiYJBhG6QrE" />

It won’t shift the front derailleur automatically, but some people actually prefer *Semi Synchro*. Personally, I went back and forth between *full* and *semi synchro*, then used semi exclusively for about six months and then finally settled on *Full Synchro Shift*.

Switching modes is easy though, so just experiment and see what’s right for you.
([more on switching modes right here](#changeshiftmode))

### Manual Mode (M)
I know I said there are two synchro modes, but technically this is not a synchro mode at all. In manual mode, the bike doesn’t shift for you at all. It is all about full manual control, just like you’re used to.

<OnPageAd variant="storefront" />

## Synchronized Shifting requirements {#synchrorequirements}
Sounds good? All **12-speed** bikes come with synchronized shift out of the box:

- Ultegra R8100 (12-speed)
- DURA-ACE R9200 (12-speed)
- 105 R7150 (12-speed)

Is yours an **11-speed road bike**? All you need in order to use synchronized shift is the [BT-DN110 internal battery](/component/internal-battery-bt-dn110/) or the [BM-DN100 external battery mount](/component/external-battery-mount-bm-dn100/). Ultegra R8050 and Dura-Ace R9150 bikes generally come with this battery. Older bikes (6870 and 9070) do not.

Synchro shift will work on these 11-speed road Di2 series:

- Ultegra 6870
- DURA-ACE 9070
- Ultegra R8050
- DURA-ACE R9150
- GRX RX815

### Mountain Bikes
Mountain bikes (M8050 and M9050) have been able to run *synchronized shifting* for a while now. The requirements are slightly different.

A display ([SC-MT800](/component/xt-display-junction-sc-mt800/), [SC-M9051](/component/xtr-display-junction-sc-m9051/) or [SC-M9050](/component/xtr-display-junction-sc-m9050/)) is required and, depending on the display, a specific battery. Any of the combinations below enable *Synchronized Shift* on MTB.

![MTB Synchro shift requirements](https://assets.bettershifting.com/synchro_shift_guide_mtb_table_7552fd526e.png)

## Change Shift Mode - enable synchro shift {#changeshiftmode}
Reading all of the above, chances are pretty good that your bike can do *synchro shifts*. For Ultegra R8050, Dura-Ace R9150, GRX, and newer this will be set up for you out of the box. The older series Di2 may require a [firmware update](/learn-how-to-update-your-di2-component-firmware/) first.

So how do you actually perform synchro shifts?

Simple - you **switch** your bike to the shift mode you like and then just shift. That’s it.

How? By double-pressing the main function button.

On **11-speed bikes** you'll find this button next to the **charge port**.

On **12-speed bikes** the function button is **on the rear derailleur**.

Pressing this button twice will cycle through the three shift modes. The default mode configuration is as follows:

- **Mode M** - Full manual shifting
- **Mode S1** - Semi Synchro shift
- **Mode S2** - Full Synchro shift

I say default configuration because these **S1** and **S2** modes are fully customisable. You can set them up any way you see fit.

You could for example set both shift modes to full synchro, but have the automatic shift points differ for each mode. Or set both modes to semi-synchro, or mix things up a bit.

### What shift mode are you in?
Let’s go back to that button. Knowing that double pressing the function button will change the selected shift mode, how can you tell what mode you’re in?

The LEDs next to the function button will tell you. On 11-speed Di2 these LEDs are on the main junction, while 12-speed Di2 has the LED on the **rear derailleur**. The LEDs light up differently depending on the selected mode.

![Change synchronized shift mode using buttons](https://assets.bettershifting.com/synchro_explained_buttons_6a1a0c4777.png)

#### 11-speed Di2 synchro shift LEDs
- **Solid red/green** lights: manual shift mode
- **Twice blinking red/green** lights: shift mode 1 (default: semi-synchronized shift)
- **Three-times blinking red/green** lights: shift mode 2 (default: synchronized shift)

#### 12-speed Di2 synchro shift LEDs
- **Blue (2 seconds)**: Manual shift
- **Flashing blue (2 times)**: Shift mode 1
- **Flashing blue (3 times)**: Shift mode 2

<YouTube videoId="dHg-Kaj0kJc" />

## Set up Synchro Shift using E-Tube Project for Windows {#setupwindows}
If you haven’t already, download and install [E-Tube Project for Windows](/di2-e-tube-software-and-downloads/). After installing it, [connect your bike to your computer](/how-to-connect-your-di2-system-to-your-windows-computer/) and launch the program.

Once connected click the *Synchronized Shift* button under **Gear Shifting** on the **Customize** tab.

![This is where you get started setting up synchro](https://assets.bettershifting.com/synchro_shift_guide_start_screen_948df76658.jpg)

You’ll now see the basic setup screen where you can change:

- **FC**: The installed Front Chain rings
- **CS**: The installed cassette
- **Synchronized Shift Interval**: How quickly synchro shifts happen
- **Gear Position Control**: whether or not Gear Position Control is enabled.

Click **Next** and you’ll be shown the shift mode setup screen.

![Synchronized Shift setup screen](https://assets.bettershifting.com/synchro_shift_guide_synchro_screen_eccd1ee6ac.jpg)

On this page, you can set up both Shift **mode 1** and Shift **mode 2**.

Directly behind the **S1** and **S2** labels you’ll see the current setting for that mode. In the image below **S1** is set to *Semi-synchronized shift* and **S2** is set to *Synchronized shift*. You can change these simply by selecting the preferred mode from the list.

![Change synchro mode](https://assets.bettershifting.com/synchro_shift_guide_change_mode_41549b3eb6.jpg)

I’ll leave these to the defaults to avoid confusing new users, but feel free to play around with it to see what happens.

### Customise Semi-synchronized shift
Configuring *Semi Synchronized shift* isn’t hard, you just need to know what it is you’re changing. You can change two values: **Rear up on front down** and **Rear down on front up**.

These do exactly what they say they do.. they change the number of gears the rear derailleur shifts up/down when you shift the front derailleur up/down.

![Semi-synchro settings](https://assets.bettershifting.com/synchro_shift_guide_semi_synchro_d70d0c0219.jpg)

Shifting up means shifting to a harder gear, while shifting down refers to an easier gear.

You can use this to compensate for front derailleur shifts, basically making the jump in gear ratio smaller.


### Set up (full) Synchronized shift
The *(full) Synchronized Shift* settings may look a bit more intimidating, but they’re fairly straightforward. All you do is drag the white boxes to your desired position.

If this seems a bit cryptic, don’t worry. Let’s walk through changing the upshift. On my bike that means shifting from the **39T** to the **53T**.

![synchro shift upshift before](https://assets.bettershifting.com/synchro_shift_guide_upshift_before_b0b724dd94.png)

Starting at the 28T at the top left, follow the green line all the way to the right, to the white box (gear ratio 3.0.0 or **39T**x**13T**). When you shift the rear derailleur one more time it’ll move to the **19T** and also shift the front derailleur. The resulting gear is **53T**x**19T**, with a gear ratio of 2.79.

If you follow the gear ratios closely you can see that, as you shift up, you move through the following gear ratios:

2.29 (**17T**), 2.60 (**15T**), 2.79 (**14T**), 3.00 (**13T**) and then back to 2.79 (**19T**). This last step means that the bike shifts to an easier gear, even though you have been shifting to harder gears for a while.

Let’s change that now.

Doing so isn’t hard, you simply drag the lower white box to the preferred gear / gear ratio. In this example I’m setting it up to shift from gear ratios **2.79** to **3.00** and then to **3.12**.

![synchro shift upshift after](https://assets.bettershifting.com/synchro_shift_guide_upshift_after_9f116a9d37.png)

Of course you could also select gear ratio **3.53**, that’s up to you. Personally, I like the jump in gear ratio to be relatively small when shifting up, but this is highly personal.

#### Synchronized Downshift
When setting up the downshifts you basically repeat the above process, but this time follow the blue line from the lower right to the top left.

This bike is set to a bit of an extreme downshift. When in the big ring it’ll shift all the way to the last gear, the **28T**. It’ll then shift the front derailleur to the little ring and the rear derailleur to **25T**. This is pretty severe cross-chaining, so let’s fix that.

![synchro shift downshift before](https://assets.bettershifting.com/synchro_shift_guide_downshift_before_509d620c51.png)

I’ll set it up to shift the front derailleur when the rear derailleur reaches the **21T**, or the fourth gear from the bottom. The most sensible gear to shift to seems to be the **17T**, resulting in a shift from gear ratio **2.52** to **2.29**.

In this scenario, you’re shifting to an easier gear and you’re most likely climbing - or having a hard time at least. You could therefore also decide to jump to the next gear instead, from **2.52** to **2.05**. Take the time to experiment and settle on what works for you.

![synchro shift downshift after](https://assets.bettershifting.com/synchro_shift_guide_downshift_after_77f2b408a2.png)

When you’re happy with the settings just click the Apply button at the bottom left of the window. And don’t forget to disconnect E-Tube Project when you’re done with the app.

## Set up Synchro Shift using the mobile app (Android/iOS) {#setupmobile}
If you have a [D-Fly, Wireless Unit or Display installed](/wireless-unit-di2-display-why-get-a-d-fly/) on your bike then you can also use the mobile app to set up *Synchronized Shifting*. The process is very similar to the one described above, with subtle differences.

For example, the mobile app features some pretty cool animations displaying how the bike moves through gears. It also allows you to set multiple presets and select the ones you like.

This is pretty cool, but it also means the mobile app can be a bit intimidating and confusing. I have written a separate page on [setting up synchronized shifting using E-Tube Project for mobile](/set-up-di2-synchronized-shifting-using-e-tube-mobile/), so read up all on configuring synchro shift there.

## What to do when your cassette/chainrings are not listed {#cassetteisnotlisted}
If you’ve installed a 105 series or non-shimano cassette or chainring you will have noticed that you cannot select that cassette in the E-Tube app. You cannot tell your bike the exact gearing that is installed and you cannot insert custom cassettes/chainrings.

The only cassettes and chainrings you can select in E-Tube Project are the ones that match the Di2 series currently installed on the bike. Have you built a bike with different series components? The rear derailleur determines what cassettes you’ll be able to select.

Seeing as setting up *(full) Synchro Shift* is done by telling the system to shift from certain gears to other gears you can imagine that not being able to actually select your gears can be a problem.

So what can you do when you cannot select your installed cassette or rings?

***Select the closest match***.

Why? Well, there are a couple of reasons.
First of all, the selected cassette / chainrings influence the displayed gears and gear ratios on the Synchro setup screen.Also, Gear Position Control is automatically enabled or disabled depending on the selected gearing.

Selecting the closest match will result in a displayed gear ratio that is pretty close to your actual gear ratios. In fact, in most cases it will not be off at all.

Even if a gear’s number of teeth or gear ratio is wrong, you can still set up synchronized shift. The trick is to look at the gear’s index.

Basically, if you set it up to synchro shift when the rear derailleur reaches the 3rd gear from the top, it’ll always do that - no matter what cassette is installed.

## Synchro Shift with FD-6870 and FD-9070 {#note68709070synchro}
*Synchronized shift* works on the older 6870 and 9070 series too - after you [install the required firmware updates](/learn-how-to-update-your-di2-component-firmware/). It makes sense for this *Synchro Shift* to be just like that on the newer series. All it really does it shift one derailleur instead of the other at certain points on the cassette, right?

Well...

There are some strange limitations in setting up your *(full) Synchronized Shift* when using the [FD-6870](/component/ultegra-front-derailleur-fd-6870-f/) / [FD-9070](/component/dura-ace-front-derailleur-fd-9070-f/) that go away when using a newer Front Derailleur.

Specifically: the point at which the bike shifts from the big to small ring can only be set to the last two sprockets or cogs on the cassette.

![Synchro shift 6870 vs r8050](https://assets.bettershifting.com/upgrade_synchro_information_cd5fb81f8b.png)

Those white boxes under the **50T**/**Top** column are the gears you can move the light blue coloured box to - this is the gear at which the bike will shift from the big to small ring. As you can tell from the image, this limitation is only there when using FD-6870 (or FD-9070). When you use [FD-R9150](/component/dura-ace-front-derailleur-fd-r9150-f/) or [FD-R8050](/component/ultegra-front-derailleur-fd-r8050-f/), you can choose the shift point from a much wider range of gears.

This actually put me off using *Synchro Shift* on my 6870 bike for a while and I switched to *semi-synchro*. After a while I switched back to *(full) Synchro* and learned to live with its limitations. Whether or not this works for you is ultimately up to you, but it's good to know.
