Front Derailleur

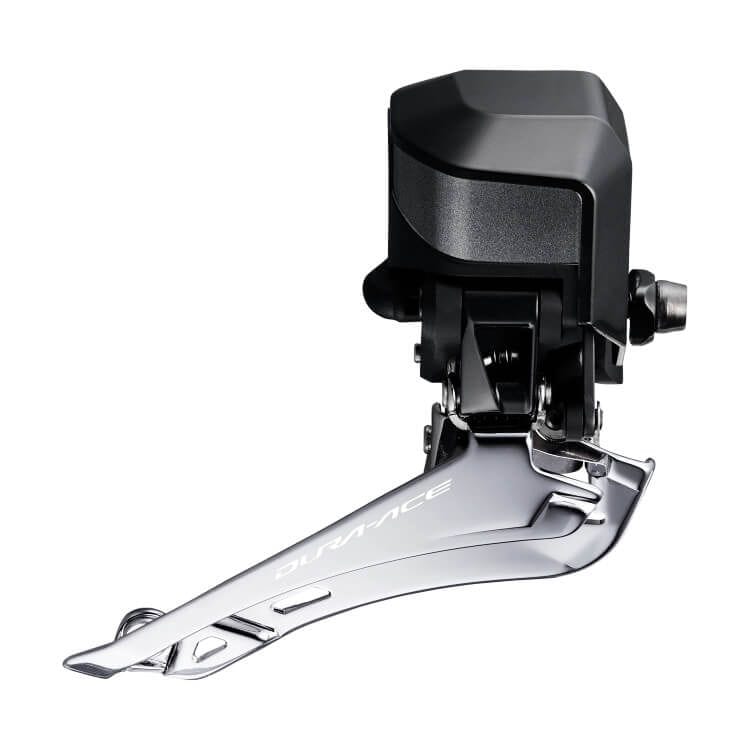

DURA-ACE FD-R9150-F
The Shimano 2x11 speed Front Derailleur features synchronized shift, ensuring ergonomic shifting operation without stress, race endurance for less damage in crash, quick and smooth front shifting under high pedaling torque and it maintains compact and smooth appearance.
It has a top gear capacity of 50-55 teeth and a total capacity of 16 teeth.
Affiliate Links
Using the affiliate links to purchase anything earns the site a small commission, at no additional cost to you.
Like the other modern front derailleurs, this FD-R9150 has one support bolt and only a top limit bolt. Setting the low limit is done electronically, as well as fine-tuning the top limit.
The process for setting the limits correctly is described on this page: set up one bolt front derailleur limits.
Alternatives
If you're trying to build a bike relatively cheap you might want to have a look at the alternatives to this front derailleur. DURA-ACE is top quality, but that comes at a cost.
The Ultegra FD-R8050 and GRX FD-RX815 are both fully compatible with the DURA-ACE R9150 series and can be used instead of this FD-R9150.
Note that the older FD-6870 and FD-9070 will work too, but their synchronized shift functionality is a bit limited. I therefore do not recommend using those older front derailleurs on modern bikes.
Specifications
- Model code: FD-R9150-F
- Series: DURA-ACE (R9150)
- Weight: 104g
- Speeds: 11
- SD50 ports: 1
- Total capacity: 16T
- Chain line: 43.5mm
- Top gear teeth: 50T - 55T
Related components
View all componentsRelated pages
Micro-adjust / set your front derailleur limits
Adjusting Di2 front derailleurs and setting limits is slightly different from mechanical front derailleurs. This page explains how to set up your Di2 front derailleur and stop it rubbing the chain.
Set up Front Derailleur limits (FD-RX815, FD-R9150, FD-R8050)
Read how to set up your two-adjustment-bolt Di2 Front Derailleur (Ultegra FD-R8050, DURA-ACE FD-R9150, GRX FD-RX815)
Set up Front Derailleur limit screw / adjustment bolt (one bolt derailleurs)
Read how to set up your two-adjustment-bolt Di2 Front Derailleur (Ultegra FD-R8050, DURA-ACE FD-R9150, GRX FD-RX815)
GRX FD-RX815 / Ultegra FD-R8050 / DURA-ACE FD-R9150 Di2 Front Derailleur installation guide
Bought a new Di2 derailleur or have to replace your old one? Read FD-rx815 / FD-R8150 / FD-R9150 Di2 Front Derailleur installation instructions here.
Manuals & other documents
Firmware updates
Below is an overview of all known firmware updates for this component. The changelog texts are Shimano's, and quite often they're a bit cryptic - sorry!
3.2.1
Adopted for FD-RX815 (No change for the use of FD-R9150)
3.1.0
Firmware updated
3.0.9
Firmware uploaded
