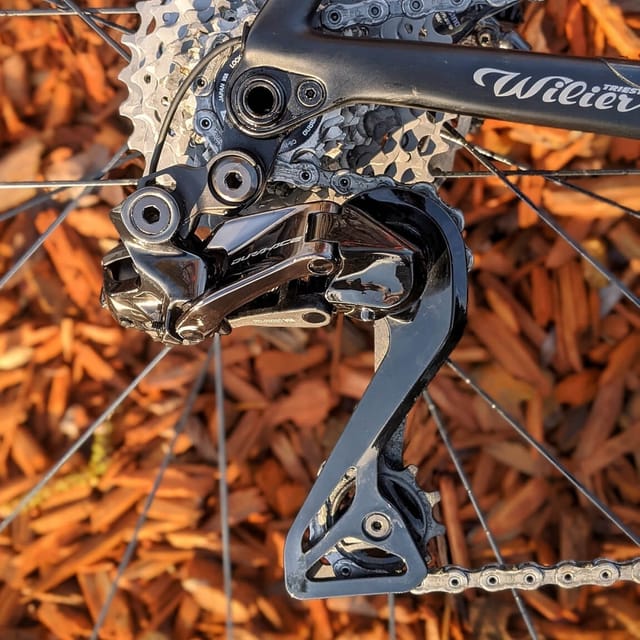

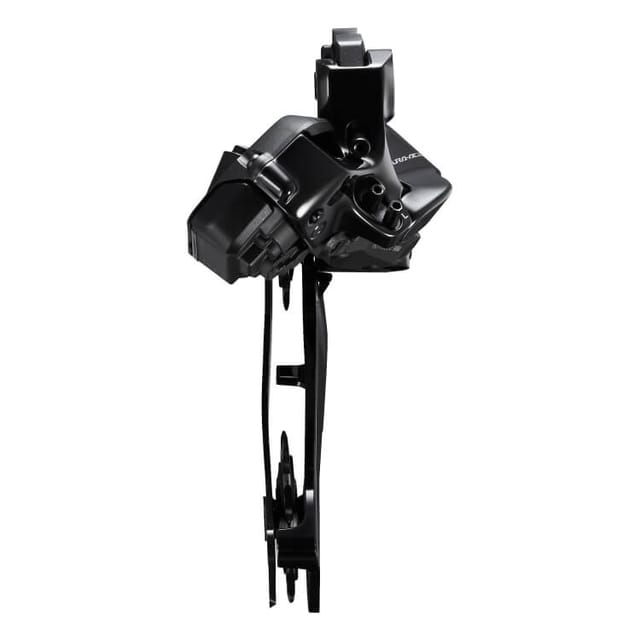

This DURA-ACE Rear Derailleur was announced by Shimano in September 2021. It is part of the **12 speed** system, **semi-wireless** and uses a new battery, the [

r8150-r9250-rear-derailleur-manual.pdf

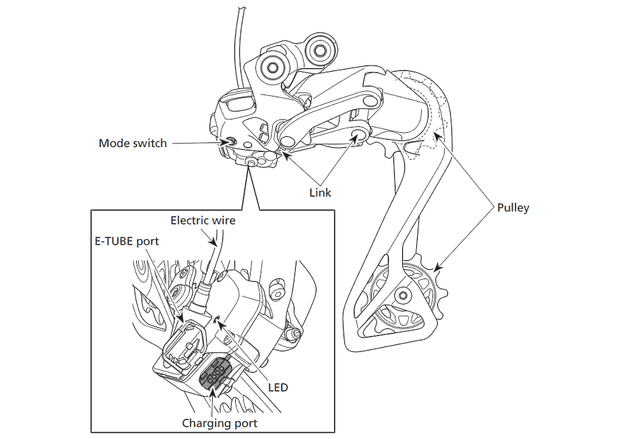

RD-R9250 / RD-R8150 User Manual































## Crash Mode Reset
Since the main junction functionality has moved to the rear derailleur, Shimano also changed the method of getting out of crash mode. Pressing the button on the rear derailleur would be hard during a race, so you can now *shift* out of crash mode.

To get out of crash mode on 12-speed road bikes, shift up and down the entire cassette. This video by Rides of Japan explains it well:

<YouTube videoId="SnUo4RdcgtA" />

## Improved chain guard
Early versions of the RD-R9250 had an issue where on some occasions the chain would at times touch the chain guard - that small tab between the two jockey wheels. This didn't impact shifting, but it did cause excessive drivetrain noise and clicking.

Shimano quietly updated the RD-R9250 outer plate to include a slimmer chain guard, fixing the issue.

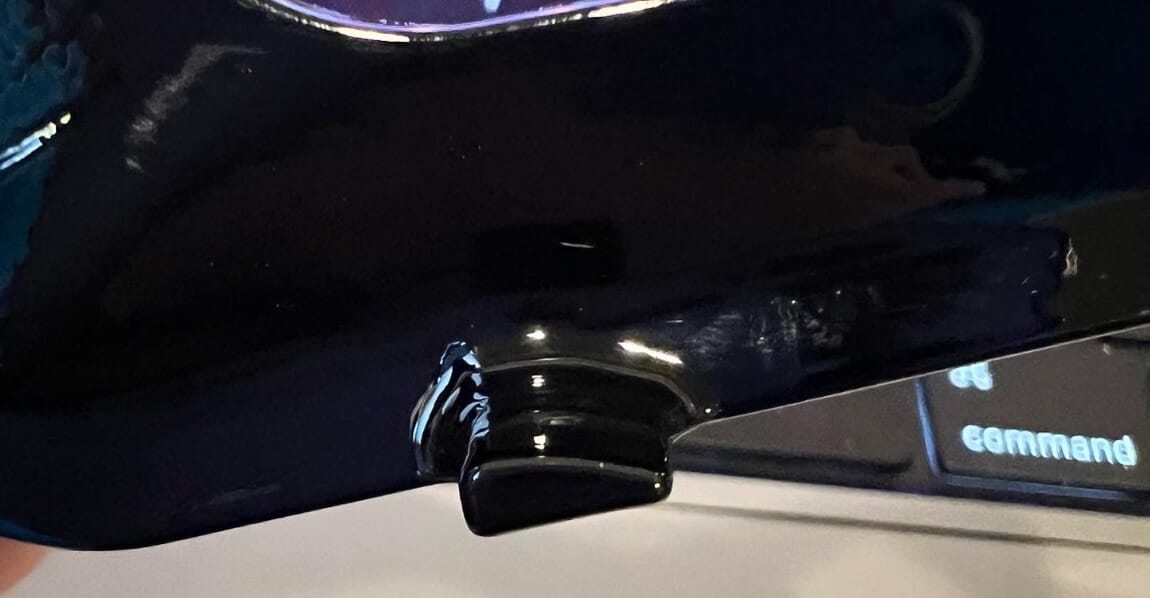

![R9250 chain guard](https://assets.bettershifting.com/component_RD_R9250_guard2_ee71d575e0.jpg)

If you are experiencing excessive drivetrain noise on your R9250 bike, be sure to check the chain guard for impact marks. Your bike shop will be able to get a new one from Shimsno. Alternatively, you can file a bit off so that the chain no longer hits the tab.

The updated chain guard looks like this:

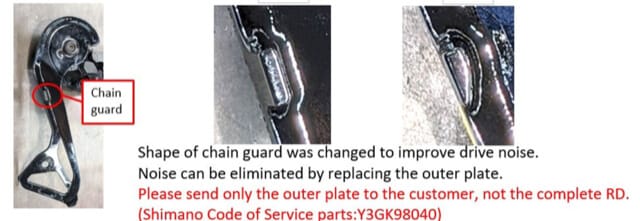

![RD-R9250 improved chain guard](https://assets.bettershifting.com/component_RD_R9250_guard_d3b3d370f7.jpg)

The part number for the new outer plate is Y3GK98040 - exactly the same as the original version of the outer plate. However, sometimes the new part is also referred to as "**R9250pcage**".


Shimano's first ever 12-speed Di2 groupset, DURA-ACE R9200 was announced September 1st, 2021. It features wireless shifting, improved disc brakes, and of course, 12-speed cassettes.





DURA-ACE

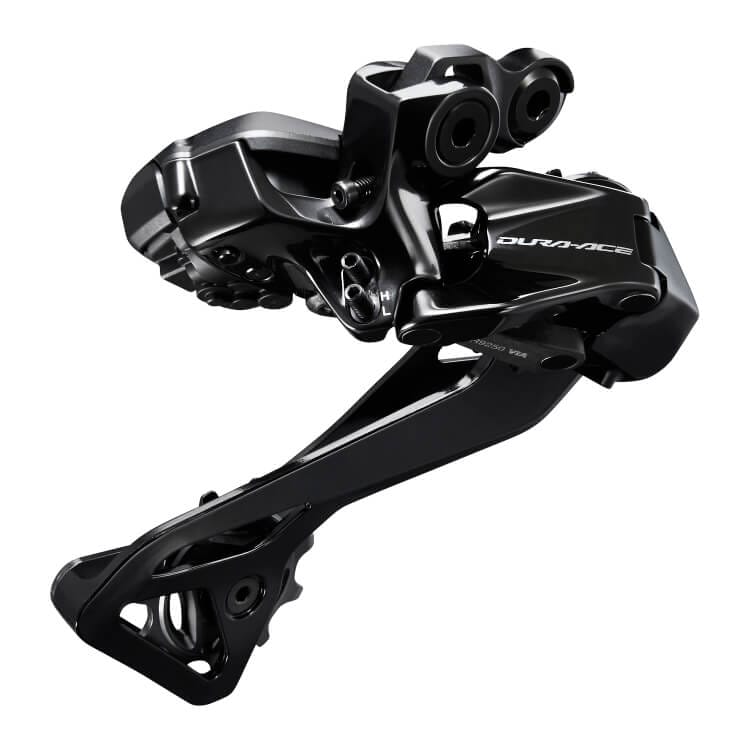

Shadow Rear Derailleur (12 speed)

With every new generation of Di2, Shimano tweaks the derailleurs and their installation process. Twelve-speed Di2 road rear derailleurs are very similar to their 11-speed siblings, with a couple of changes to make your life easier.

## Tools and prerequisites
Before you start, make sure you have these tools nearby:

- [TL-EW300 wiring tool](/component/di2-cable-plug-tool-tl-ew300/)
- Torque wrench (8-10 Nm)
- 2mm and 5mm hex keys.

And yes, you *can* install the rear derailleur without a torque wrench or the B-gap tool, but they definitely help.

Want to know **what tools I use**? I have listed them on my [Amazon page](https://www.amazon.com/shop/bettershifting/list/2C3V1I3AKX450).

You’ll also need the derailleur itself, and the small parts that come with it:

![install-12sp-rd-parts.jpg](https://assets.bettershifting.com/install_12sp_rd_parts_730f0b01c5.jpg)

- Shimano GG Adjustment gauge (G-gap template)
- Derailleur: [Dura-Ace RD-R9250](/component/dura-ace-shadow-rear-derailleur-rd-r9250/), [Ultegra RD-R8150](/component/ultegra-shadow-rear-derailleur-rd-r8150/), or [105 RD-R7150](/component/105-shadow-rear-derailleur-rd-r7150/)
- Derailleur dust cover
- Wire holder

Finally, you’ll need to have the [BT-DN300 battery installed](/installation-guide/di2-internal-seatpost-battery/), as well as [a 12-speed chain](/installation-guide/installing-a-new-chain-length-and-direction/) and cassette, to complete setting up the derailleur.

### Optional: install the wire holder
Twelve-speed Di2 front derailleurs come with an optional wire holder. It’s a little piece that simply clips onto the rear derailleur.
If you’d like to use the wire holder, I recommend attaching that to the rear derailleur now. It’ll be easier than doing so with the derailleur on the frame.

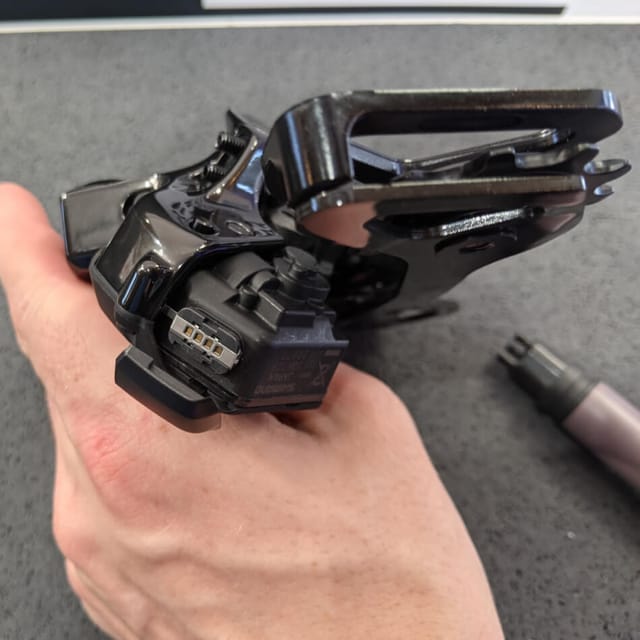

To attach the wire holder, simply push it into the bracket axle as shown in the images below.

![install 12sp rd wire holder](https://assets.bettershifting.com/install_12sp_rd_wire_holder_r_L_a41a4437d9.jpg)

## Attach the derailleur to the frame
Before you attach the derailleur to the frame, take a good look at the derailleur hanger and determine whether it is a standard hanger or the **direct mount** type.

Direct mount hangers appear in line with the seat stay, while a standard mount will make a sharper bend down.

![Derailleur mount types](https://assets.bettershifting.com/rd_rx_installation_guide_rear_derailleur_direct_vs_standard_mount_ea968de92d.png)

### Standard mount
On a **standard mount** frame you install the derailleur with the **B2-link plate** attached. It should come this way out of the box. If the B2-link plate is not installed, do so now – it is colored **green** in the image above.

Apply a small amount of grease to the mounting bolt and secure the rear derailleur to the frame. Before tightening it fully, make sure the stopper plate touches the B-tension stop, with no gap between them.

![Install rear derailleur to the hanger](https://assets.bettershifting.com/install_12sp_rd_to_hanger_2f77ce9a8e.jpg)

You will need a **5 mm hex wrench** to do this and the recommended torque is **8 – 10 Nm**.

### Direct mount
Is your derailleur hanger of the **direct mount** type? Then **remove the B2-link** from the rear derailleur so that you can mount it directly onto the frame/hanger.

You do this by removing the bracket axle using a **size 5** hex wrench. Remove the link and attach the derailleur to the frame using the bracket axle.

![Rear derailleur direct mounted](https://assets.bettershifting.com/rd_rx_installation_guide_attach_rear_derailleur_direct_mount_18df71ee9e.png)

## Connect the EW-SD300 electric wire
If you haven’t done so already, route the [EW-SD300 Electric Wire]() from the battery to the rear derailleur. Plug the wire into the **middle port** on the battery.

Want to use the derailleur’s wire holder? Then route the wire through that too. Simply push it behind the clip and it’ll stay put.

Next, take the rubber cover that came with the derailleur and slide it over the other end of the wire.

Slide it just past the plug, and then use the [TL-EW300 wire tool](/component/di2-cable-plug-tool-tl-ew300/) to push the wire into the port on the derailleur. You should feel it click or snap into place.

With the wire secure, slide the rubber cover down, making sure it covers the wire plug and the port on the derailleur.

![Install the derailleur port cover and wire](https://assets.bettershifting.com/install_12sp_rd_wire_cover_a994322865.jpg)

That’s it, the derailleur is now connected to the bike. Now put the rear wheel back on the bike and install the chain.

If you haven’t sized your chain to the correct length yet, [read this page on chain sizing](/installation-guide/installing-a-new-chain-length-and-direction/).

## Finish setting up the derailleur
With the derailleur installed to the frame and connected to the rest of the system, there are only four steps to set up a 12-speed rear derailleur is done through four steps. They are:

- [Adjust the B-screw](#adjustbscrew)
- [Micro-adjust the gear shifting](#microadjust)
- [Set the low limit](#setlowlimit)
- [Set the high limit](#sethighlimit)

## Adjust the B-gap {#adjustbscrew}
The B-screw is used to set the gap between the derailleur guide pulley and the largest cassette sprocket. You’ll want this gap to be relatively small, without having the guide pulley touch the sprocket cogs.

To get started, first shift the **front derailleur** to the **smallest chainring**. Shift the **rear derailleur** to the **largest sprocket**, or easiest gear.

Shimano’s dealer manual states that you should be turning the crank arm **in reverse** as you do this. The training videos don’t mention this at all, so it *probably* doesn’t matter all that much.

![Turn the B-screw to move the guide pulley](https://assets.bettershifting.com/adjust_rd_b_screw_direction_bc288b5922.jpg)

Next, we’ll turn the B-screw to adjust the gap between the **guide pulley** and the **largest** sprocket. The recommended gap depends on the cassette used.

This is Shimano’s guideline for **Dura-Ace** and **Ultegra**:

- **11-28T** - 18mm
- **11-30T** - 14mm
- **11-32T** - 10mm
- **11-34T** - 6mm

And these are the recommended values for **105 Di2**:
- **11-34** - 10mm
- **11-36** - 6mm

Alternatively, you can use the **GG adjustment gauge**. This should be included with the rear derailleur. If it isn’t, and you’d like to buy one, the part number is **Y3GK89600**.

![Micro-adjust your 12-speed rear derailleur](https://assets.bettershifting.com/adjust_rd_gg_gauge_ab14a25b64.jpg)

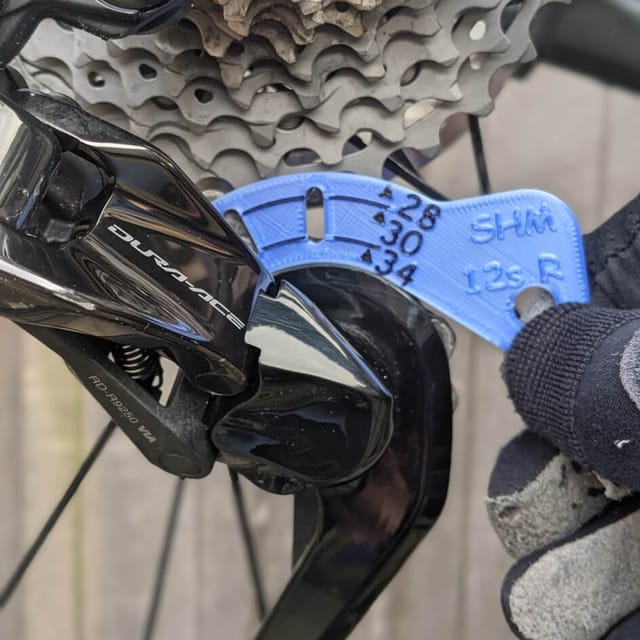

If you have access to a 3D-printer, you can try printing one. Chris Heerschap published a model of the tool on [ThingiVerse](https://www.thingiverse.com/thing:5186418).

You set the **adjustment gauge** on the plate as shown below, and then turn the B-screw to align the tip of the sprocket teeth with the correct line.

![Set the B-gap tool](https://assets.bettershifting.com/install_12sp_rd_bgap_tool_605be04116.jpg)

If you’re using a **30T** cassette, use the top line. If you’re using a **34T** cassette, use the lower line. For **28T** cassettes you’d use the top of the adjustment gauge itself.

Note that the **105** rear derailleur has different optimal distance settings and therefore also its own specific adjustment gauge tool. You **can not** use the Ultegra / Dura-Ace tool with 105 Di2.

## Micro-adjust the gear shifting {#microadjust}
Next, you’ll have to fine-tune the gearing, using micro-adjustment. I'll show you how to do this on the bike, but you can also set 12-speed rear derailleur limits using the mobile app - [E-Tube Cyclist](https://bettershifting.com/di2-e-tube-software-and-downloads/).

First, shift the rear derailleur to the 5th gear from the largest sprocket. This will ensure the chain line is as straight as possible.

![Adjust your RD starting in the 5th gear](https://assets.bettershifting.com/adjust_rd_5thgear_7434706008.png)

Press and hold the rear derailleur button for about **2 - 5 seconds** to enter **adjustment mode**. When in this mode, the LED lights up **yellow**.

Once the system is in adjustment mode, press the button highlighted below, while turning the cranks. This will move the rear derailleur toward the larger sprockets, in tiny steps.

![Adjust the RD towards gear 4, until it rubs](https://assets.bettershifting.com/adjust_rd_until_rub_4th_gear_2da076a13e.png)

Keep doing this until the chain touches the **4th sprocket**, and a slight rubbing noise can be heard.

At this point, you’ll have to back off the rear derailleur a bit to move it to its final position. Press the button shown below **five times**.

![Move the RD back 5 steps, towards gear 5](https://assets.bettershifting.com/adjust_rd_move_back_f15014b3fa.png)

Press and hold the rear derailleur button for about **0.5 seconds**, and you’ll exit adjustment mode.

The derailleur should now be set correctly. This is just a starting point though, so shift through all the gears and double-check that they all work well. Make further adjustments if necessary.

Note that at this point you haven’t set the derailleur limits yet, so be careful not to shift the chain off either end of the cassette. Also, if the derailleur doesn’t shift onto the last gears, that is OK at this point. As long as all the other gears are shifting fine, don’t worry.

If you find that your derailleur shifts well in the middle of the cassette, but performance degrades at either end, consider checking your derailleur hanger alignment.

Dave Rome wrote a really good guide on derailleur hanger tools right here: [derailleur hanger alignment tools on CyclingTips.com](https://cyclingtips.com/2021/12/the-best-derailleur-hanger-alignment-tool-9-tested/).

## Set the low limit {#setlowlimit}
With the derailleur shifting set up, let’s now set the low limit.
Shift the rear derailleur to the **largest** sprocket (easiest gear).
Now use a **size 2 hex wrench** to tighten the low side stopper bolt until it just touches the low side stopper. This is the bolt with an **L** next to it.

It’ll look similar to this:

![The derailleur's low limit stopper bolt](https://assets.bettershifting.com/adjust_road_rd_low_limit_stopper_bolt_b96bc9cf6b.png)

If you’re confused and can’t get it right, just [send me a message](/contact/) and I’ll do my best to help.

To check whether your limit setting is correct, shift the rear derailleur down three gears and then back to the largest sprocket again. It should shift to the easiest gear just fine.

If it doesn’t, relax the limit screw a bit, and try again.
## Set the high limit {#sethighlimit}
Now we’ll set the high stopper bolt.

Shift the rear derailleur to the smallest sprocket or hardest gear.
Tighten the top stopper bolt with a **size 2 hex wrench** until it just touches the top-side stopper. This is the bolt with an **H** next to it.

Turn the top-side stopper bolt **counterclockwise** one turn to loosen it and allow for the rear derailleur to **overshift**.

![Set the stopper bolts](https://assets.bettershifting.com/rd_rx_installation_guide_low_top_side_stopper_bolt_rear_derailleur_cca353bee7.png)

Note that if you overtighten either stopper bolt the derailleur will not stay in that highest or lowest gear and shift back within five seconds. When this is the case you'll also hear some clicking or ticking, indicating that the derailleur is blocked from fully completing the shift.

If this happens to you, loosen the top side stopper bolt a bit, and check the shifting again.

Shimano says that the following could happen, if your limits are set too tight:

- Chain noise does not stop.
- The battery level drops quickly because extra load is being placed on the motor.
- The motor may be damaged due to overload (irreparable).

## All done!
Your rear derailleur should now be installed and set up pretty well. If you're having problems, or just cannot get it right - leave a comment or [send me a message](/contact/) and I'll do my best to help you!

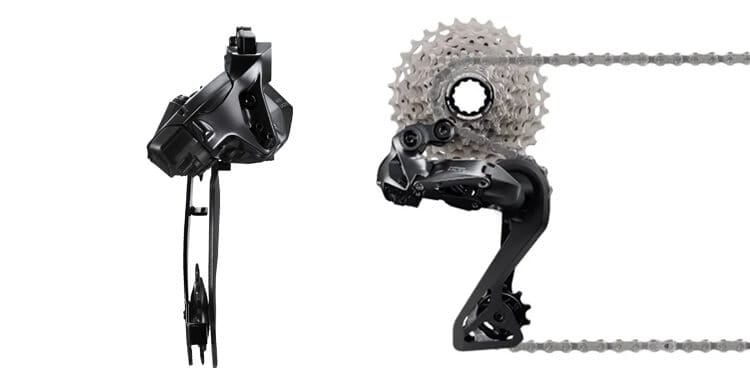

Micro-adjust your 12-speed rear derailleur

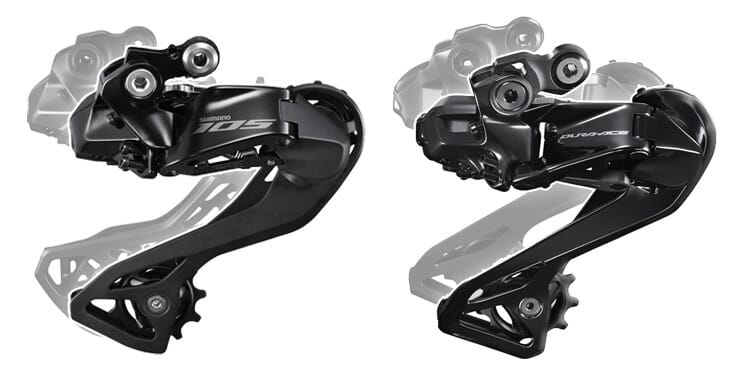

This page shows you how to install a 12-speed Di2 road rear derailleur and how to the B-screw, limits, and fine-tune the shifting using micro-adjust.
